- slider stroke mm : 200
- automatic level : Fully Automatic
- throat depth mm : 300
- machine type : Torsion Bar
- length of working table mm : 5000
- width of working table mm : 300
- dimension : 7130*1800*2630
- place of origin : Anhui, China
- brand name : Accurl
- material / metal processed : Brass / Copper, Stainless Steel, Alloy, Carbon Steel, Aluminum
- automation : Automatic
- extra services : End Forming
- weight kg : 13000
- motor power kw : 55
- key selling points : High Safety Level
- warranty : 2 years
- machinery test report : Provided
- video outgoing-inspection : Provided
- core components : Bearing, motor
- Type : Metal Bender Tools
- Product name : Hydraulic Cnc Bending Machine
- Application : Steel Plate Sheet Bending
- Material : Stainess Steel
- Stroke : 200mm
- Voltage : 220V/380V/415V/440V/customized
- CNC or not : yes
- Color : Customized
- Gap : 400
- Daylight : 350mm

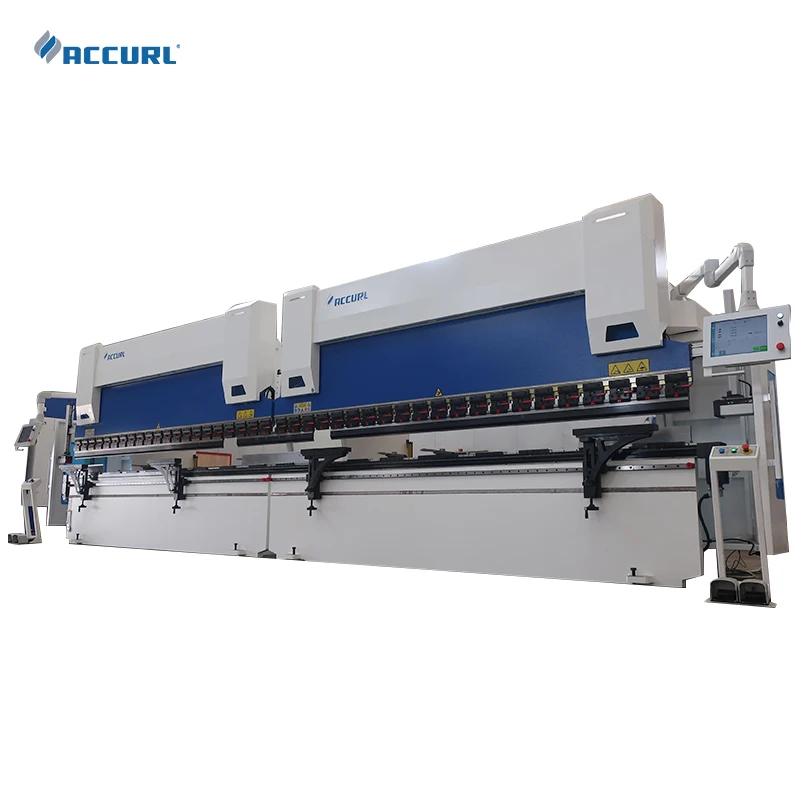

Product Description
The ACCURL® press brake, engineered with great care for details, is a high-quality machine tool. The studies made on the framework flections have allowed us to design a product that reacts in the most appropriate and responsive way to the mechanical solicitations, therefore guaranteeing a stable structure, thus a higher precision in bending. This feature is even enhanced by a system of automatic crowning. Worth mentioning is also the possibility to add options and upgrades on the configuration, at later stage.
ACCURL® Press Brakes are known for their precision and reliability: today, these characteristics are joined by the high technological options such as the virtual bend software, the thickness measurement system and robot-based automation. In the new era of modern press brakes, all of these bends can be done without operator intervention, without tools, without any slowing down of the bending process…

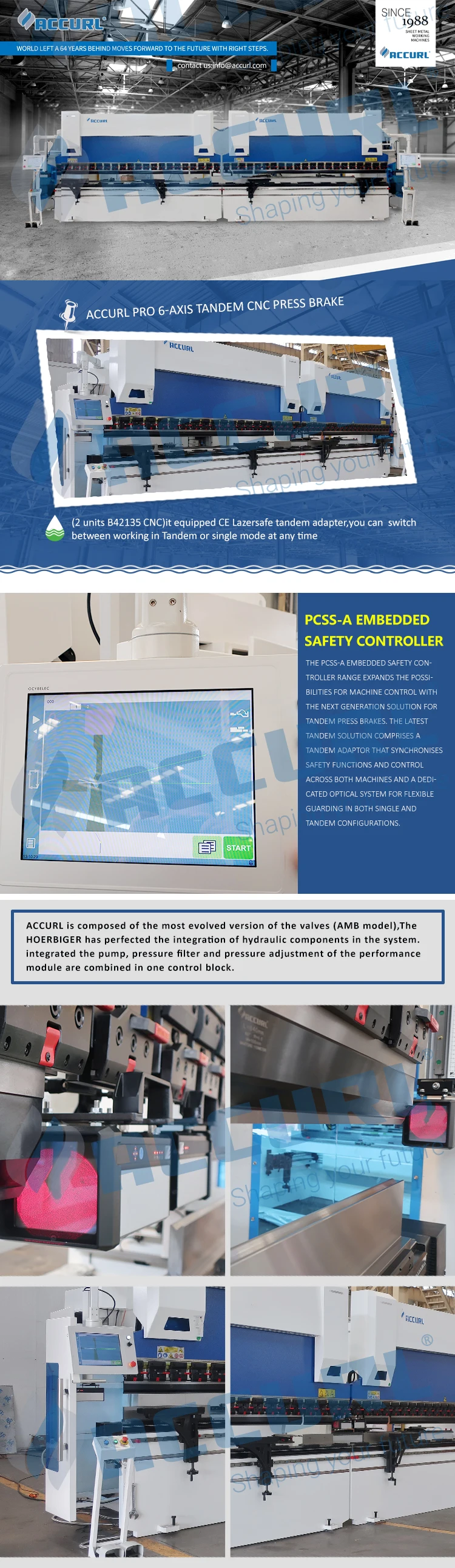

Detailed Images
|
Type
|
Bending Length
|
Bending Capacity
|
Gap
|
Stroke
|
|
B2050
|
2000mm
|
500kn
|
320mm
|
160mm
|
|
B2580
|
2500mm
|
800kn
|
320mm
|
160mm
|
|
B32110
|
3200mm
|
1100kn
|
400mm
|
200mm
|
