- Applicable Material : MDF, Metal
- condition : New
- laser type : Fiber Laser
- Cutting Speed : 72m/min
- graphic format supported : AI, Dst, Dwg, DXF, DXP, LAS
- cutting thickness : 6mm~30mm
- cnc or not : Yes
- cooling mode : Water Cooling
- place of origin : Anhui, China
- brand name : ACCURL
- laser head brand : Raytools
- servo motor brand : Yaskawa
- guiderail brand : HIWIN
- control system brand : Cypcut
- weight kg : 12000
- Key Selling Points : High Productivity
- optical lens brand : Might
- warranty : 3 years
- mode of operation : continuous wave
- configuration : gantry type
- products handled : Sheet Metal and Tube
- feature : Automated Loading
- Control Software : cypcut controller
- Laser type : IPG fiber laser generator from USA
- Laser power output rating : 500W~12000W
- X-axis travel : 1550mm
- Y-axis travel : 3050mm
- Working table : Open design, fixed table
- Driving mode : Double rack and pinion driving system
- Format supported : PLT, DXF, AI etc
- Position accuracy : 0.05mm
- Total Power consumption : 15KW
- Product name : Fiber Laser Metal Cutting Machine
Products Description
SMART KJG SERIES FIBER LASER CUTTING MACHINE
ACCURL® assemble their lasers cutting machine 2000w/3000w/4000w/6000w to the strictest quality standards with nothing but world class components to ensure lasting quality at an attractive price.
SmartLine is the general purpose 2D laser cutting machine by Accurl utilized around the globe across a multitude of applications, manufacturing demands, and budgets. Available in five sizes and with laser powers ranging from 1,000W to 6,000W fiber Laser.
The following elements are included:

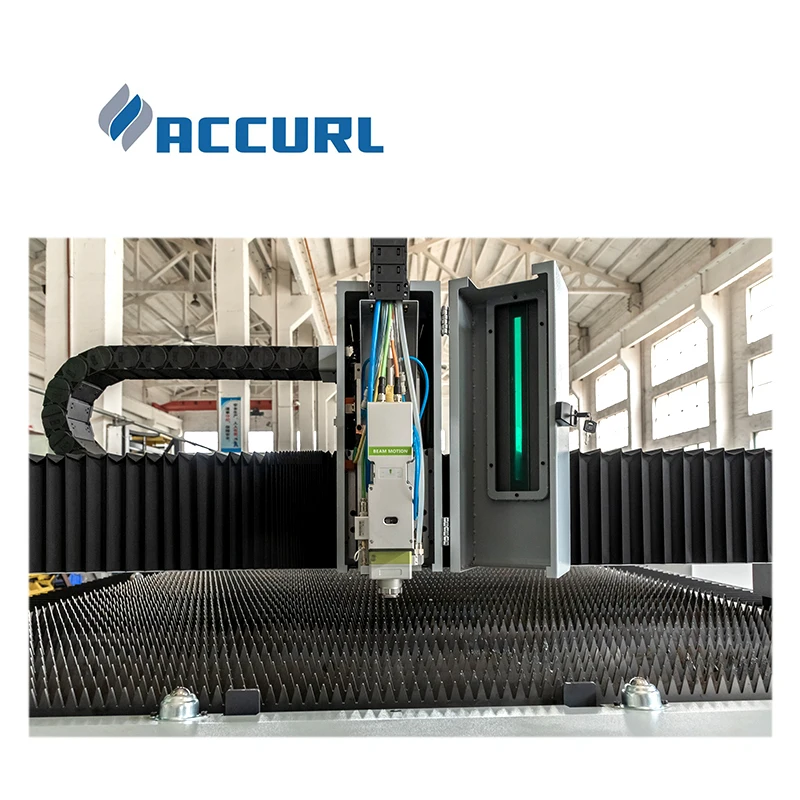

• Laser Cutting Head: Raytools laser cutting head;Precitec Cutting head
• CNC Controller: CypCut Fscut 2000 CNC System; BECKHOFF TwinCAT Touch Screen Control System
• CNC Controller: CypCut Fscut 2000 CNC System; BECKHOFF TwinCAT Touch Screen Control System
HYPCUT Touch FSCUT8000 TwinCAT CNC System
• Cutting Area: 3000x1500mm, 4000×20000mm,6000x2000mm,6000x2500mm
• Cutting Speed: Max 100m/min; Positioning: 140m/min; Accelerations:1.6G
• Cutting Area: 3000x1500mm, 4000×20000mm,6000x2000mm,6000x2500mm
• Cutting Speed: Max 100m/min; Positioning: 140m/min; Accelerations:1.6G
ACCURL BRAND
SmartLine is the general purpose 2D laser cutting machine by Accurl utilized around the globe across a multitude of applications,
manufacturing demands, and budgets. Available in five sizes and with laser powers ranging from 1,000W to 6,000W fiber Laser.
manufacturing demands, and budgets. Available in five sizes and with laser powers ranging from 1,000W to 6,000W fiber Laser.
FULLY ANNEALED FRAME
ACCURL steel frames undergo annealing at over 600⁰ to relieve stress. They are built to last years of heavy use without distortion.Auto changing pallet system allows over 1800kg loading weight.
A heavier frame means less vibration and better accuracy. the machine frames are reinforced to minimize twists and deformation while the robust frame of the machine is joined to the chassis by steel bars.
LASER BEAM SECTION
The beam body adopts the overall aluminum casting method, annealing eliminates internal stress and processes, The process is casting →annealing stress → rough machining → vibration aging → semifinishing → vibration aging →finish machining, the machine is machined after tempering, the strength, rigidity and stability of the beam are guaranteed, the precision of the beam can be maintained for a long time. Mainly for the high speed cutting of high power laser cutting machine provides an effective guarantee.
GRAPHITE ANTI-BURN TECHNOLOGY
The area in the entire machine tool where the laser can shoot at isall covered and protected by 20mm thick graphite anti-bruning.To insuring the machine bed and working table not be out of shape and burned-out.
DRIVE SYSTEM
The beam is mounted on a pair of precision REXROTH linear guide rails & with advanced German ALPHA engineering and precision
manufacturing have created the highest quality linear systems available today.
manufacturing have created the highest quality linear systems available today.

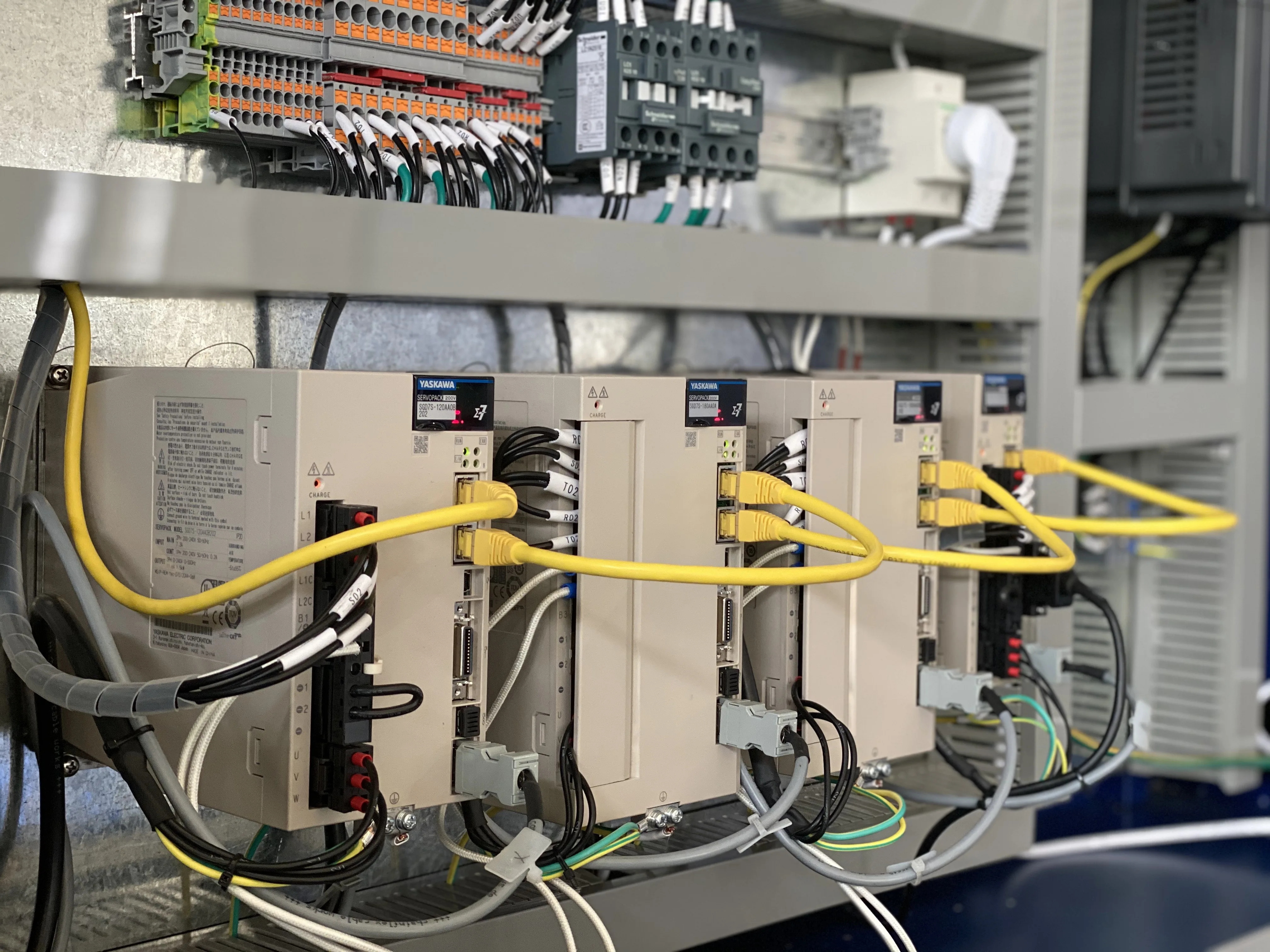

High-speed EtherCAT communication

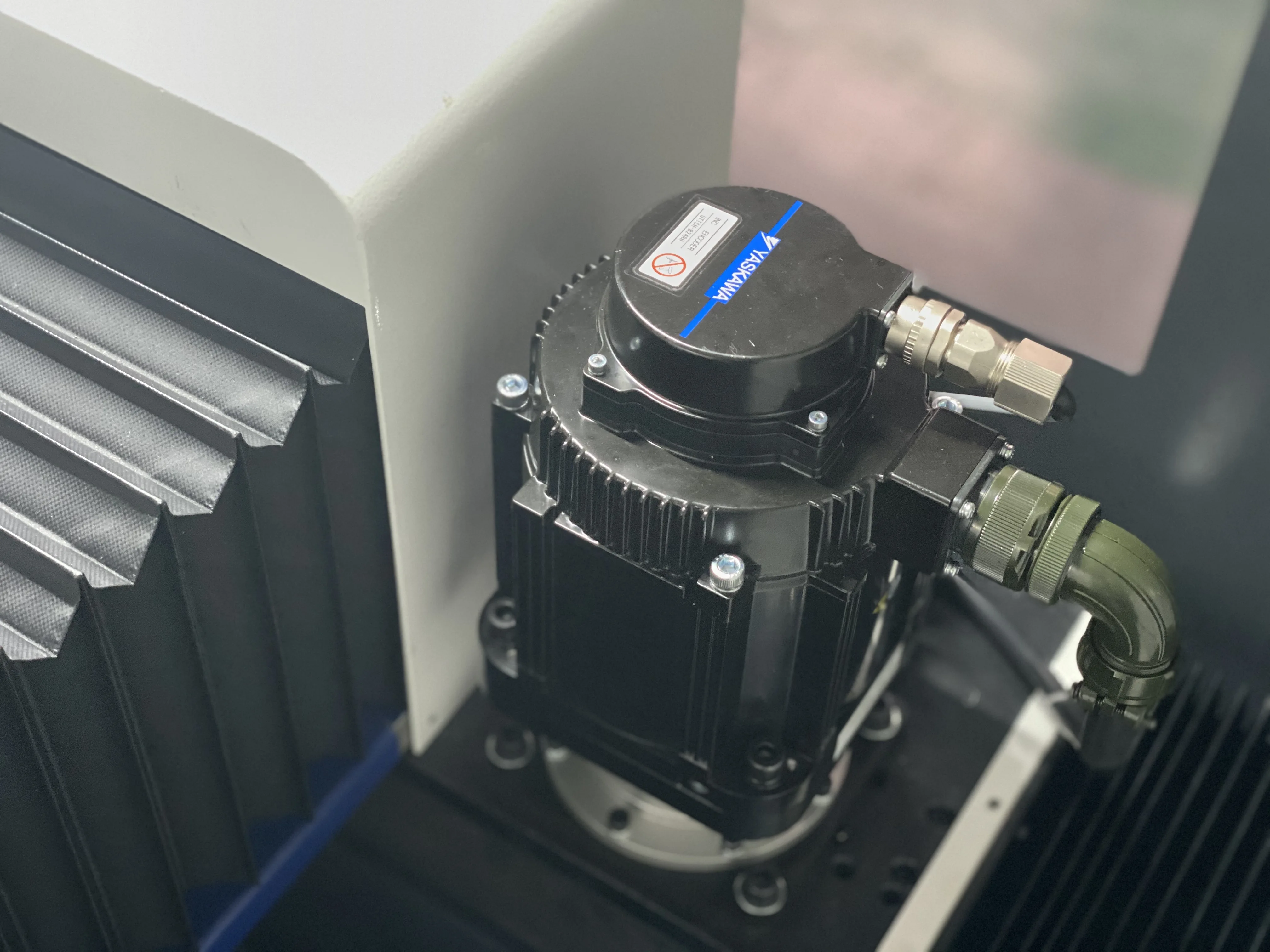

Servo Motors and drives from YASKAWA
.
DUST EXTRACTION SYSTEM
This system is used to filter dry dust from industrial leaks, in accordance with VDI guidelines 3677, paragraph. The filter elements use compact porous filters. In many countries it is forbidden to circulate filtered air during the cutting of stainless steel CrNi. Therefore, it is recommended that the user install air ducts to the outside.
CNC CONTROL SYSTEM
The FSCUT2000 laser cutting control system of an economical laser cutting control system.
Widely used in the field of metal and nonmetal laser cutting. Because of its outstanding performance in the field of fiber laser cutting, by the vast number of high-end users.
BLT4XX SERIES CUTTING HEAD
Bevel Cutting
One Time Forming
With AB swing axis can support cutting V,Y, X and other types of bevels,maximum ±45°
Bevel and one time forming,reducing beveling process,reducing cost and increasing eciency.
Water Cooling
Full BodyWater Cooling
Cover 90% of the cutting head to improve cutting stability.
Closed-Loop Monitoring
Smarter and More Ecient
Built-in multi-sensor,realtime closed-loop intelligent monitoring,rapid diagnosis of problems and
early warning.
Gas Pressure Monitoring
More Stable Cutting
Real-time monitor the gas output to reduce the impact on the cutting quality.
BLT5 SERIES PIPE/BEVEL CUTTING
Bevel Cutting
One Time Forming
With AB swing axis can support cutting V,Y, X and other types of bevels,maximum ±45°
Bevel and one time forming,reducing beveling process,reducing cost and increasing eciency.
The maximum ±45 bevel cut can be achieved. The B LT5X0H (250 focal length) can cut I-beams up to
400mm x 400mm inone pass, reducing the beveling process andimproving eciency.
Bevel and one time forming,reducing beveling process,reducing cost and increasing eciency.
The maximum ±45 bevel cut can be achieved. The B LT5X0H (250 focal length) can cut I-beams up to
400mm x 400mm inone pass, reducing the beveling process andimproving eciency.
L-Shape
Stronger Sealing
L shape cutting head can reduce the oscillation angle of the fiber, enectively extend the fiber life.
Collision Protection
Easy Maintenance
Replaceity ourself and lower the cost to return it to the manufacture.
Gas Pressure Monitoring
More Stable Cutting
Real-time monitor the gas output to reduce the impact on the cutting quality.
PROFILE & PIPE CUTTING SYSTEM OPTIONAL
The Smartline series offers unparalleled versatility. Accurl’s optional tube and pipe cutting system has the capability to precisely cut pipe/tube and makes it a necessity for anyone who needs precision parts made from various materials, sizes, and thicknesses.
LASER SOURCE

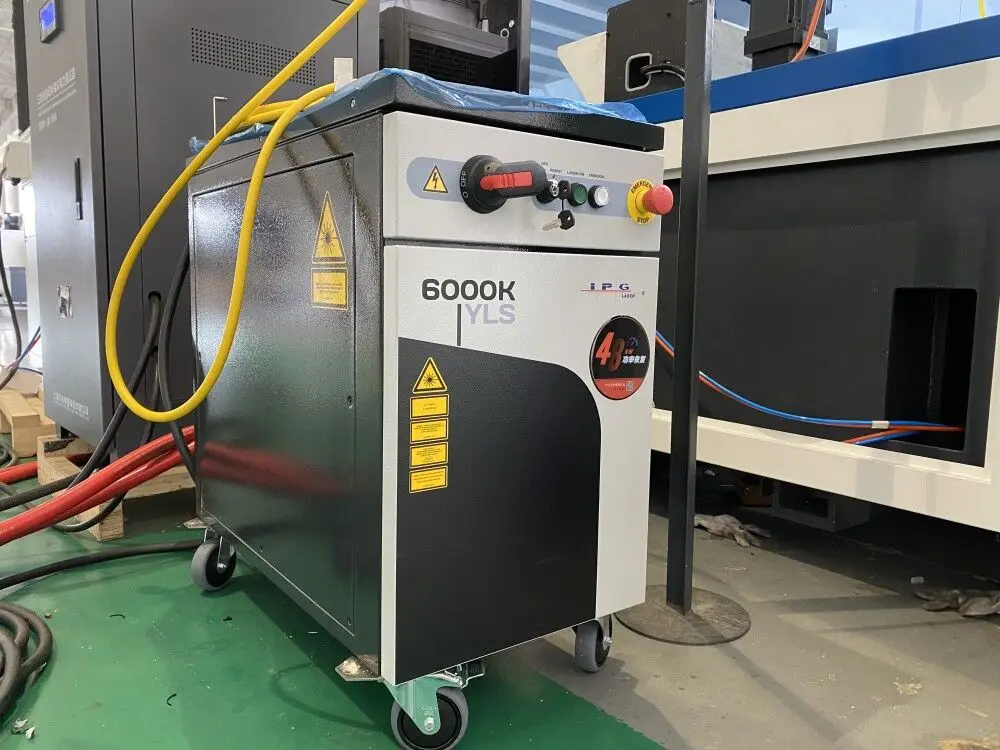

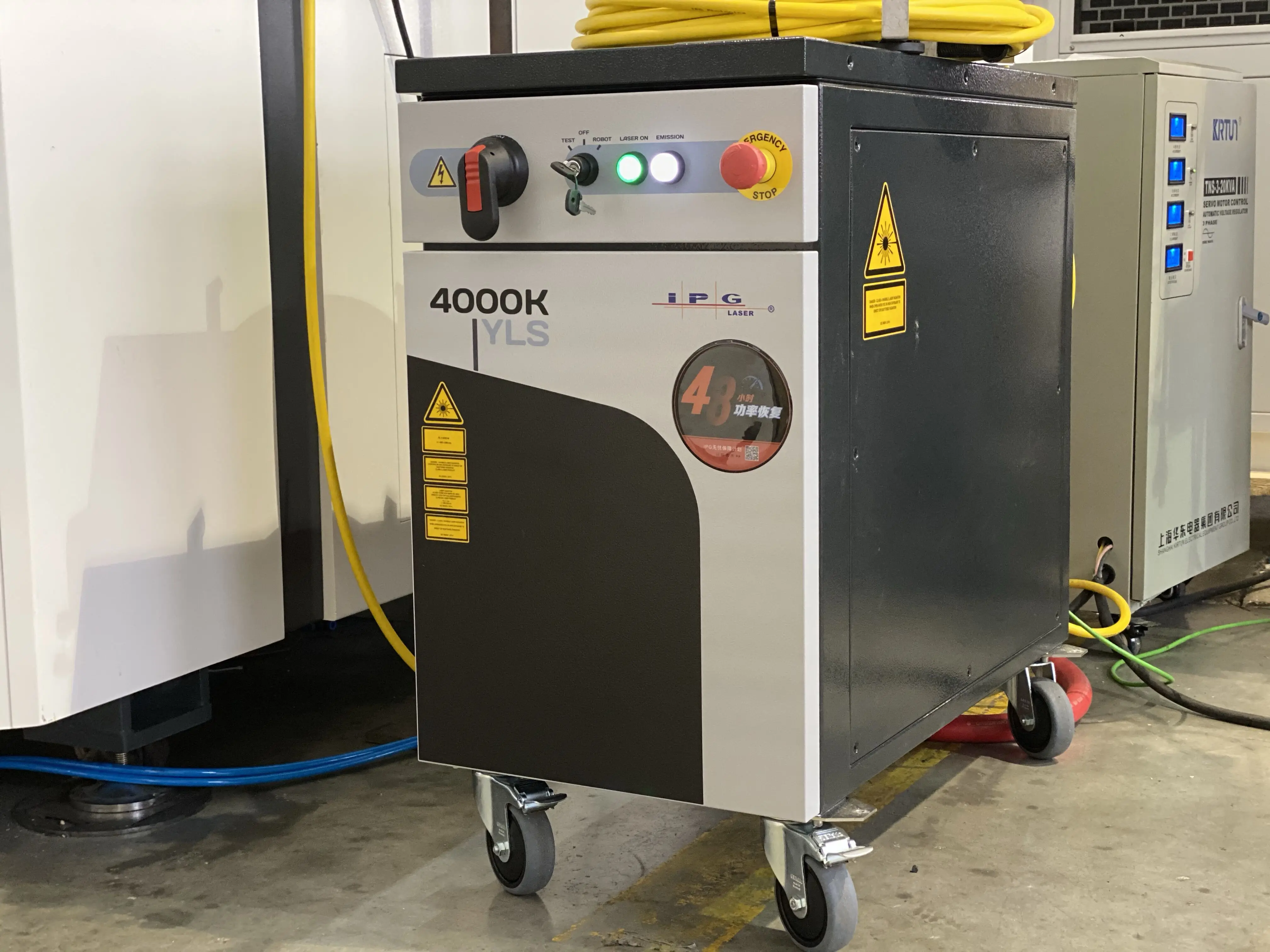

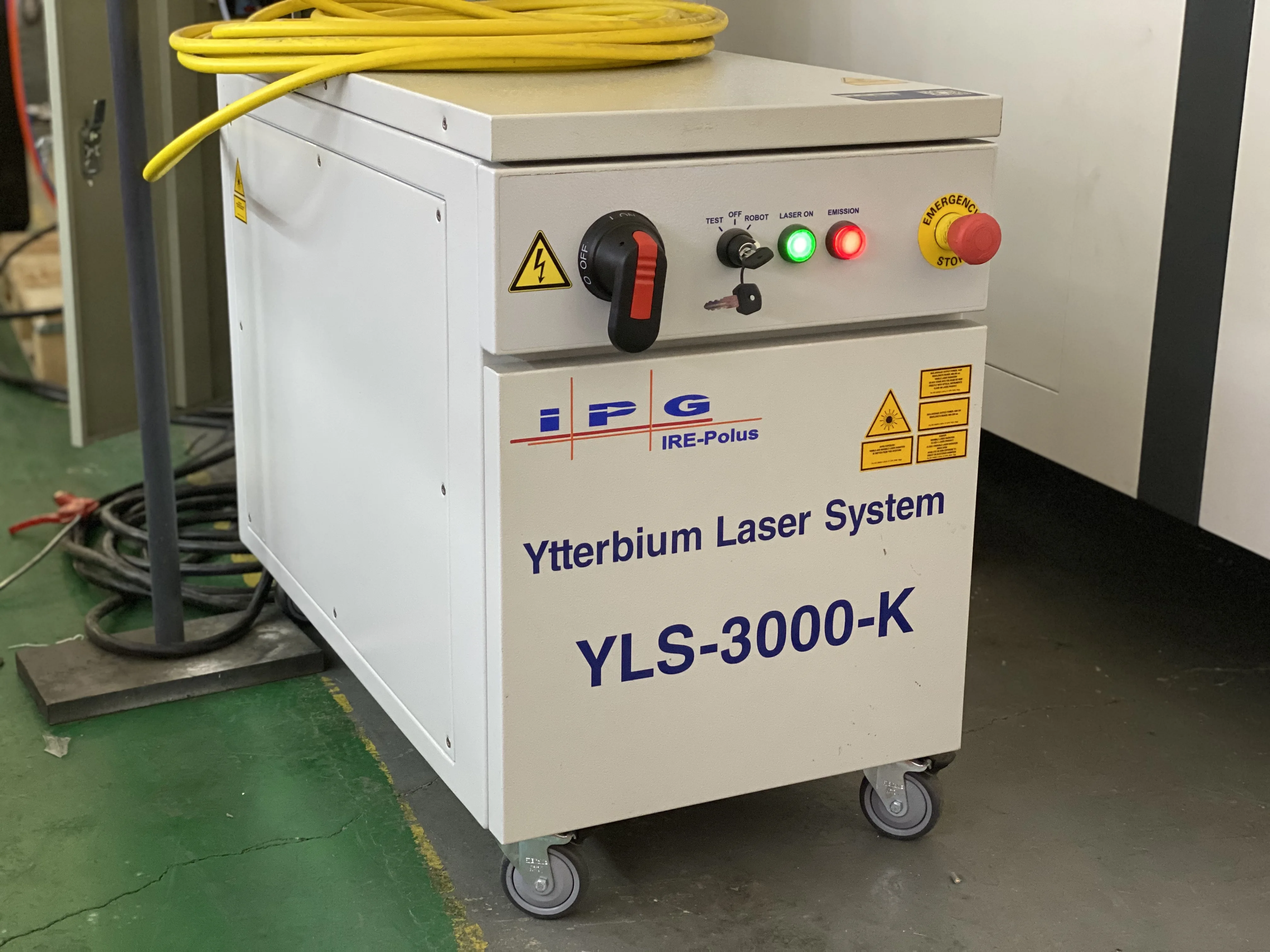

Germany IPG Fiber Laser Resonator
IPG 3000W Ytterbium Laser Resonator
IPG 4000W Ytterbium Laser Resonator
IPG 6000W Ytterbium Laser Resonator
|
MACHINE DIMENSION AND WEIGHT
|
WORKING AREA
|
||||
|
MACHINE MODEL
|
3015
|
4020
|
MACHINE MODEL
|
3015
|
4020
|
|
Lenghtmm
|
8000
|
10500
|
X axismm
|
3060
|
4060
|
|
Widthmm
|
2600
|
3280
|
Y axismm
|
1540
|
2050
|
|
Heightmm
|
2250
|
2250
|
Z axismm
|
100
|
100
|
|
Weightkg
|
12000
|
15000
|
Max.sheet weightkg
|
1100
|
1800
|
OPTIONAL FOR LOADER & UNLOADER BRG SYSTEM 2.0
Accurl Loader & unloader BRG System 2.0 is the automated solution that best optimizes the flow of material, which improves both the safety at work and the safety of the process. The solutions range from simple to fully automated operations.
