- Applicable Material : MDF, Metal, Crytal
- condition : New
- laser type : Fiber Laser
- Cutting Speed : 10m/s
- graphic format supported : AI, Dst, Dwg, DXF, DXP, LAS
- cutting thickness : 100mm
- cnc or not : Yes
- cooling mode : Water Cooling
- place of origin : Anhui, China
- brand name : ACCURL
- laser head brand : Precitec
- servo motor brand : Yaskawa
- guiderail brand : Rexroth
- control system brand : Beckhoff
- weight kg : 8000
- Key Selling Points : Energy saving
- optical lens brand : Might
- warranty : 3 years
- mode of operation : continuous wave
- configuration : gantry type
- products handled : Sheet Metal and Tube
- feature : Automated Loading
- Control Software : cypcut controller
- After-sales Service Provided : Engineers available to service machinery overseas
- Laser type : USA IPG Fiber BK-6000w
- Linear guide : Taiwan HIWIN
- Reduction Gears : French MOTOREDUCER
- Transmission : Taiwan YYC gear and rack
- Laser head : Swiss Raytools auto-following
- Table-driven system : Japanese Yaskawa Servo Motor & Driving System
- Total Power consumption : Accurl Laser Professional Laser Cutting Software
- Product name : Fiber Laser Metal Cutting Machine
Products Description

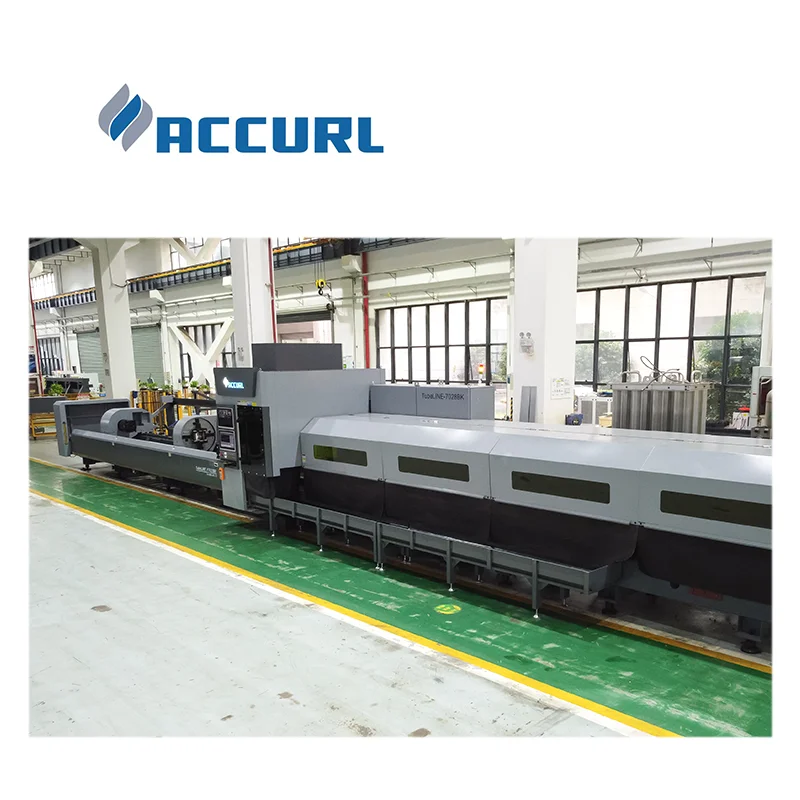

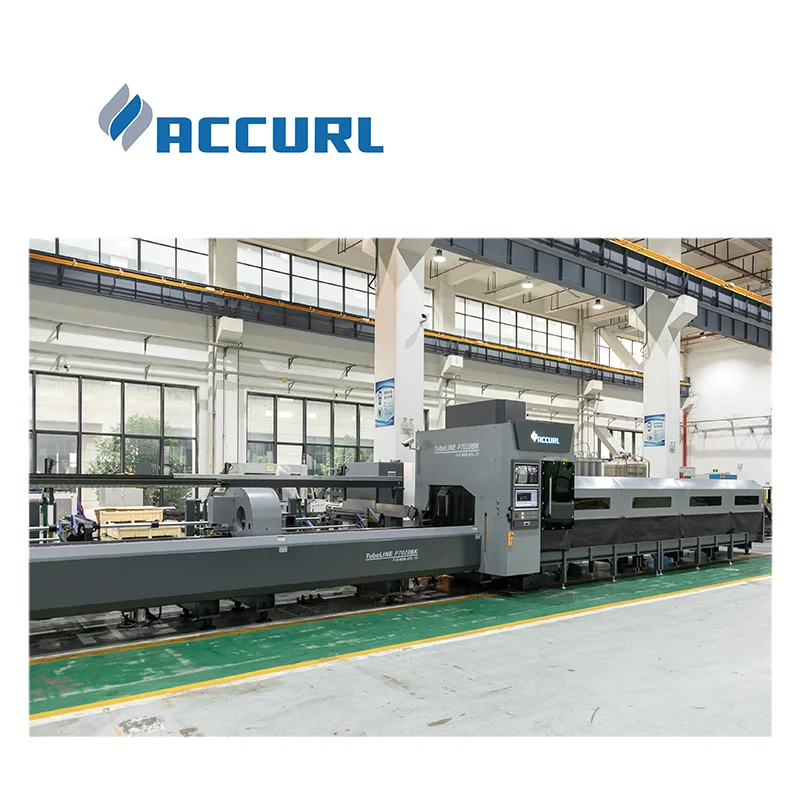

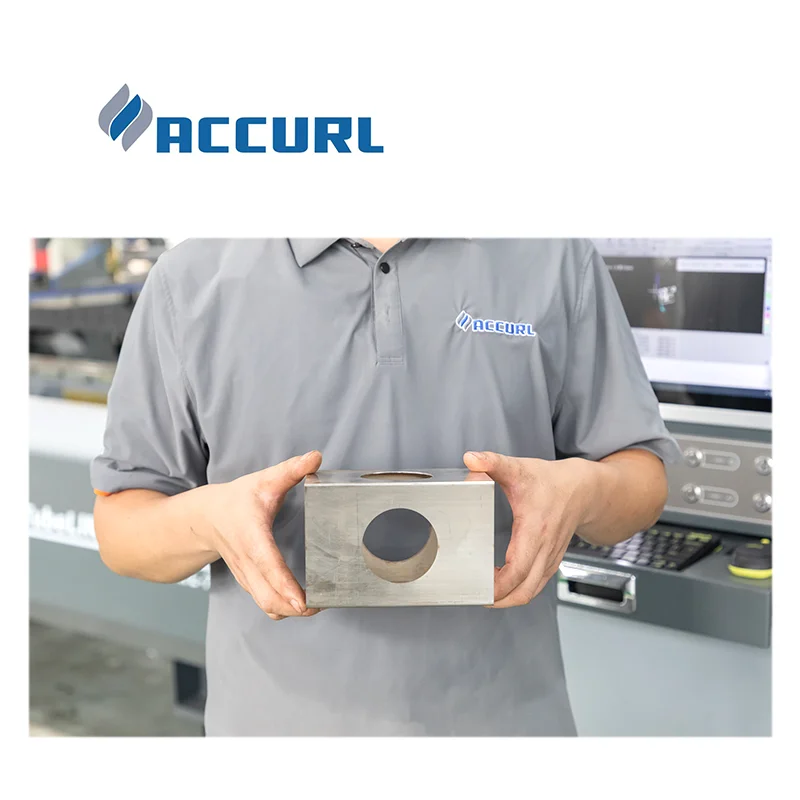

ACCURL TubeLINE BK Series FIBER LASER TUBE CUTTING MACHINE
ACCURL TubeLINE BK Series is a compact and efficient tube cutting solution with advanced technical features for optimal performance.It offers versatility, ease of use,& best-in-class engineering for processing various tube shapes. Ideal for frequent production changeovers and adapting to different materials. Invest in TubeLINE for a profitable cutting solution
Intelligent operation system, with tubes graphs warehouse and integrated splicing process of multiple tubes. Professional control system, to realize intelligent cooperation of machine tools. Butler-type machine tool debugging and maintenance plan, safe and reliable. Tube cutting graphics flattening and other rich cutting auxiliary functions, convenient and intuitive.
STANDARD:
Machine Model: TubeLINE-SERIES
Laser Cutting Head:ACCURL BLT Series Auto Focus
Laser Sources: IPG & MAX Photonics
Material Size Range: Round tube 15-500mm
For LoadMaster Tube: 6M / 7M / 9M / 12M
Maximum Tube Length & Weight: 12000mm, 1200kg
Motion System: Yaskawa Servos & Drivers – X,Y,Z Axis
X.Y.Z axis position accuracy: ±0.02mm

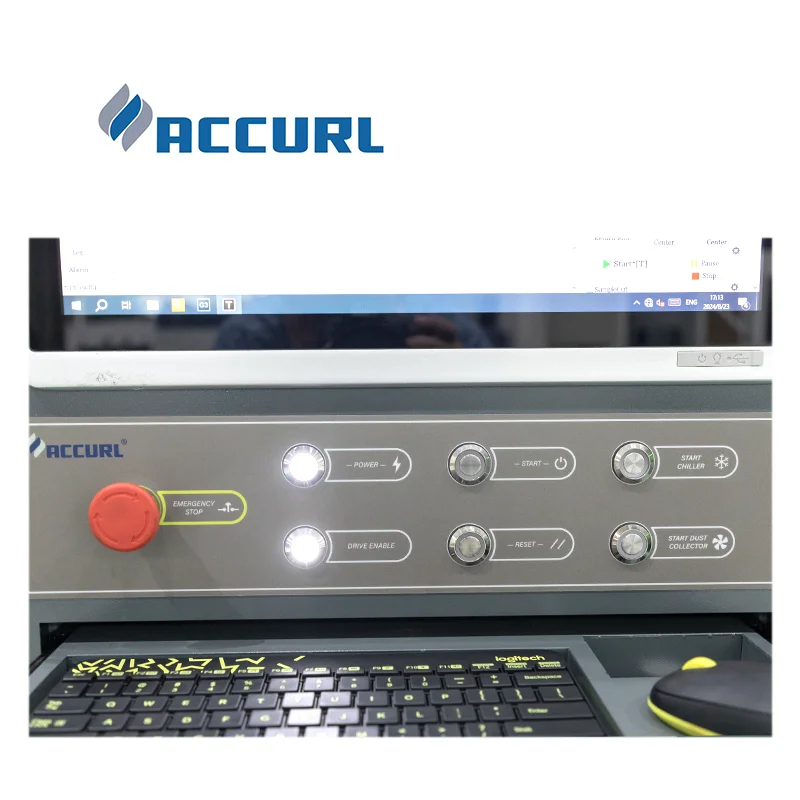

User Interface HMl：ACCURL 21.5”Touch Screen with Camera Display
Fume Extraction：With Optional Dust Collector
Class IV safety system and CE marking
Laser Cutting Head:ACCURL BLT Series Auto Focus
Laser Sources: IPG & MAX Photonics
Material Size Range: Round tube 15-500mm
For LoadMaster Tube: 6M / 7M / 9M / 12M
Maximum Tube Length & Weight: 12000mm, 1200kg
Motion System: Yaskawa Servos & Drivers – X,Y,Z Axis
X.Y.Z axis position accuracy: ±0.02mm
User Interface HMl：ACCURL 21.5”Touch Screen with Camera Display
Fume Extraction：With Optional Dust Collector
Class IV safety system and CE marking
MACHINE BODY
ACCURL steel frames bed adopts welding
structure, rough machining after annealing, then vibration aging treatment, and then finishing, can completely eliminate the stress of welding and machining,good rigidity, high precision, can maintain long time use without deformation.

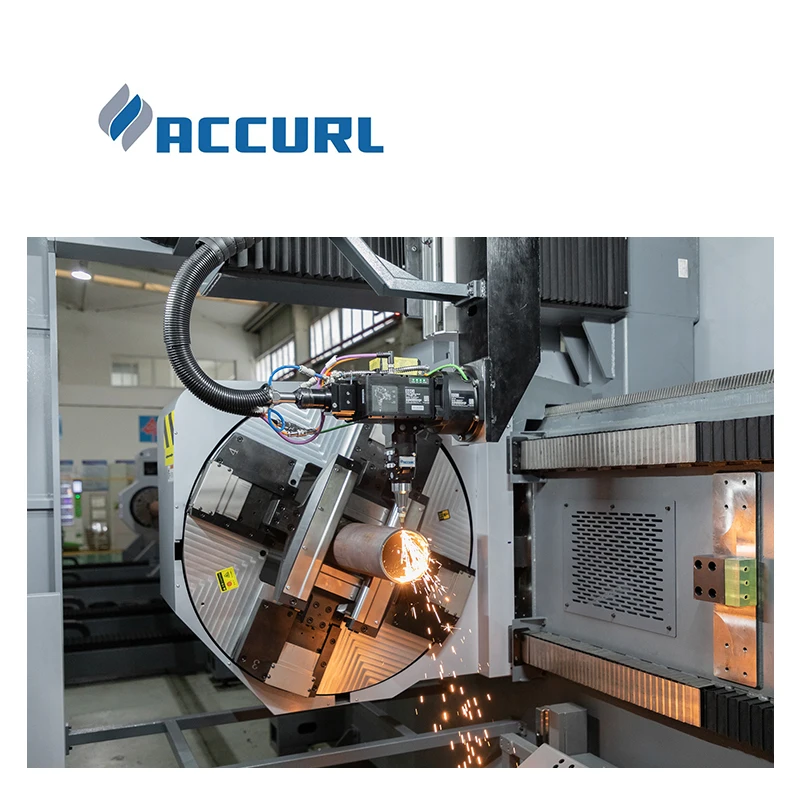

CHUNKS AND CLAWS
Two high quality rotate chuck move with synchronous rotation, which ensure tube holding more steady . It reduce tube vibration to minimum, with solid guarantee for high accuracy in complicate tube figure.Suitable for cutting tube with diameter range from Ø20mm to Ø320mm.
FRONT CHUNKS
The X、Y、Z linear Axis and A、B rotary Axis both adopt imported large torque servo motor, high precision, high speed, large torque, large inertia, stable and durable performance, which ensures the high speed and acceleration of the whole machine.
MEDIUM CHUNKS
The three chuck real-time to maintain the pipe before and afterthree-point clamping positioning, cutting space-time running speed can achieve max stable cutting, relative cutting efficiency to be high.
REAR CHUNKS
Independent research and development of the chuck with good sealing and motion characteristics, can hold square tube, round tube, elliptical tube, flat tube, triangle tube, I-beam and other materials.

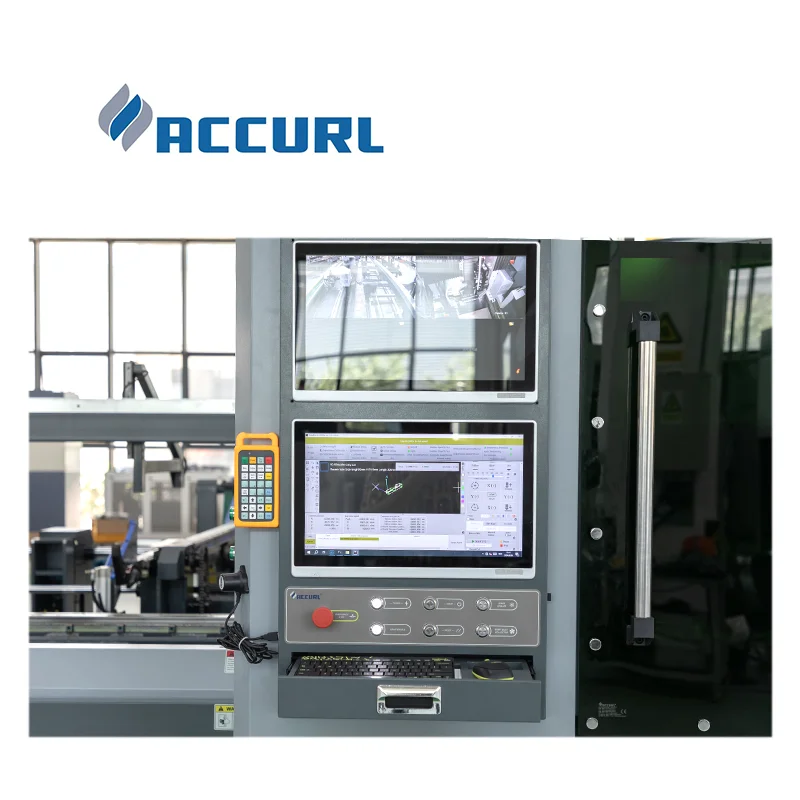

CNC CONTROL SYSTEM
The FSCUT-5000 laser cutting control system of an tube laser cutting control system. Widely used in the field of metal and
nonmetal laser cutting. Because of its outstanding performance in the field of fiber laser cutting, by the vast number of high-end users.
nonmetal laser cutting. Because of its outstanding performance in the field of fiber laser cutting, by the vast number of high-end users.
BLT4XX SERIES CUTTING HEAD

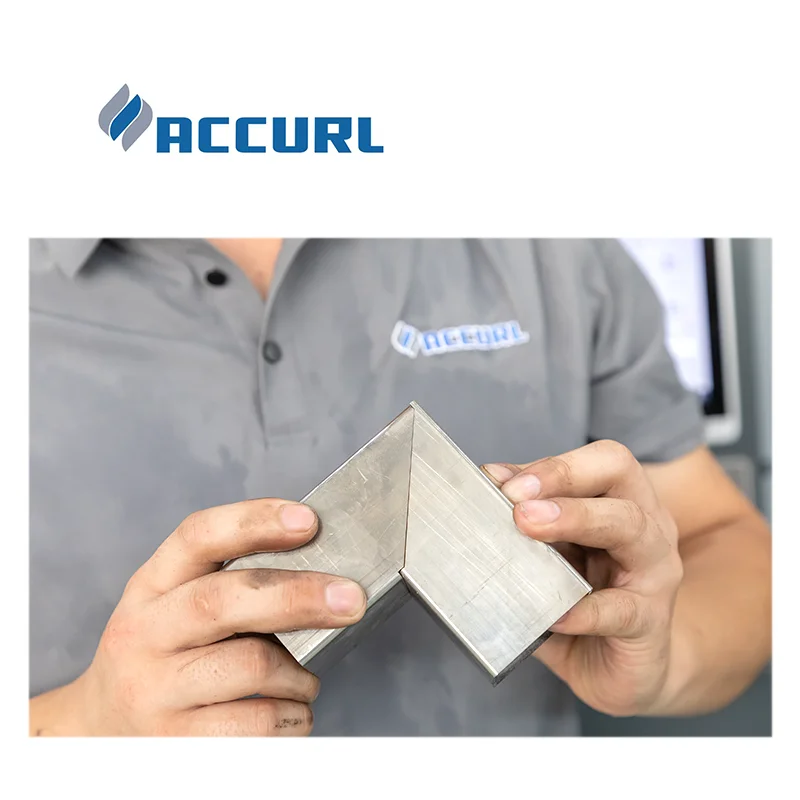

Bevel Cutting
One Time Forming
With AB swing axis can support cutting V,Y, X and other types of bevels,maximum ±45°
Bevel and one time forming,reducing beveling process,reducing cost and increasing eciency.
Water Cooling
Full BodyWater Cooling
Cover 90% of the cutting head to improve cutting stability.
Closed-Loop Monitoring
Smarter and More Ecient
Built-in multi-sensor,realtime closed-loop intelligent monitoring,rapid diagnosis of problems and
early warning.
Gas Pressure Monitoring
More Stable Cutting
Real-time monitor the gas output to reduce the impact on the cutting quality.
BLT5 SERIES PIPE/BEVEL CUTTING
Bevel Cutting
One Time Forming
With AB swing axis can support cutting V,Y, X and other types of bevels,maximum ±45°
Bevel and one time forming,reducing beveling process,reducing cost and increasing eciency.
The maximum ±45 bevel cut can be achieved. The B LT5X0H (250 focal length) can cut I-beams up to
400mm x 400mm inone pass, reducing the beveling process andimproving eciency.
Bevel and one time forming,reducing beveling process,reducing cost and increasing eciency.
The maximum ±45 bevel cut can be achieved. The B LT5X0H (250 focal length) can cut I-beams up to
400mm x 400mm inone pass, reducing the beveling process andimproving eciency.
L-Shape
Stronger Sealing
L shape cutting head can reduce the oscillation angle of the fiber, enectively extend the fiber life.
Collision Protection
Easy Maintenance
Replaceity ourself and lower the cost to return it to the manufacture.
Gas Pressure Monitoring
More Stable Cutting
Real-time monitor the gas output to reduce the impact on the cutting quality.
AUTOMATIC LOADING SYSTEM

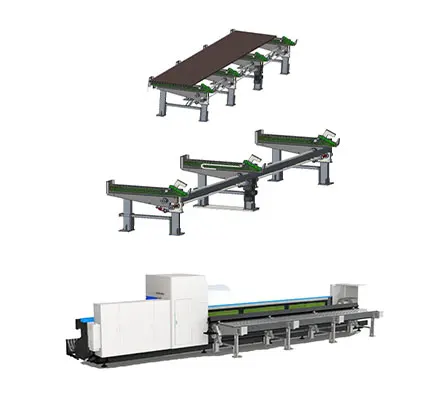

SEMI-AUTOMATIC LOADING SYSTEM SAT-60
*Transmission module: Place the pipe on the loading belt manually and the belt will transport the pipe forward.
* Material Misalignment module: The pipe is separated from the root, misplaced to the loading jaws.
* Loading module: The loading jaws send the pipe to the loading support of the main bed one by one.
* Loading Size: The size range of loading material is Ø25- Ø120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs.
* Material Misalignment module: The pipe is separated from the root, misplaced to the loading jaws.
* Loading module: The loading jaws send the pipe to the loading support of the main bed one by one.
* Loading Size: The size range of loading material is Ø25- Ø120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs.

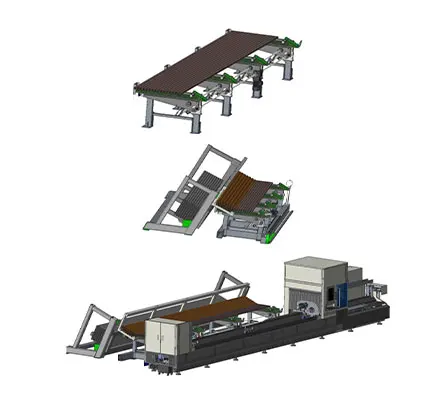

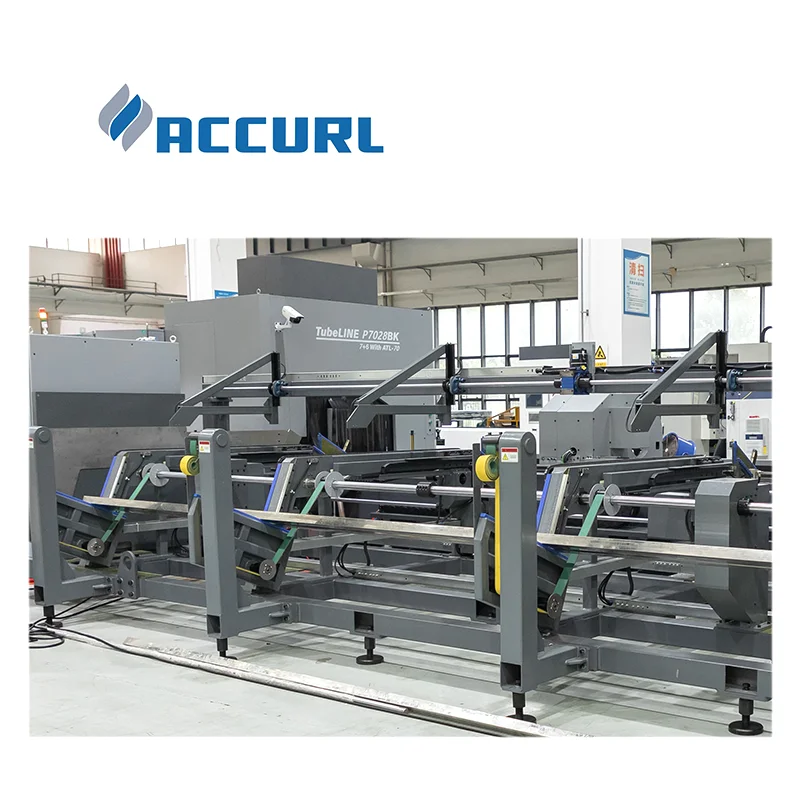

AUTOMATIC MECHANICAL LOADING SYSTEM ATL-60
* Height Limit module: Automatically distinguish the long and short sides of the rectangular tube to ensure that each rectangular tube is laid flat and forward.
* Material framemodule: The whole bundle of pipes is hoisted and loaded into the material frame.
* Length measuring module: Flatten the pipe to the length of the pipe and transfer the date to the host.
* Loading Size: The size range of loading material is φ25-120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs. The first loading time is less than of equal to 70s,and the subsequent loading time is less than or equal to 20s.
* Material framemodule: The whole bundle of pipes is hoisted and loaded into the material frame.
* Length measuring module: Flatten the pipe to the length of the pipe and transfer the date to the host.
* Loading Size: The size range of loading material is φ25-120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs. The first loading time is less than of equal to 70s,and the subsequent loading time is less than or equal to 20s.
Specification
|
Model
|
TubeLINE A Series
|
TubeLINE BK Series
|
TubeLINE D Series
|
|
Power
|
1500W~6000W
|
6000W~15000W
|
|
|
Processing range
|
φ240
|
φ200 | φ280 | φ320
|
φ360 | φ500
|
|
For LoadMaster Tube
|
6000mm
|
6000mm / 7000mm / 9000mm
|
9000mm / 12000mm
|
|
Max no-load running speed
|
100m/min
|
100m/min
|
101m/min
|
|
Max idle speed
|
100r/min
|
100r/min
|
85r/min
|
|
Max mass of single pipe
|
250kg
|
350kg
|
1200kg
|
|
For unloading
|
≤2000mm
|
≤3000mm / 6000mm
|
≤6000mm / 9000mm / 12000mm
|
