- slider stroke mm : 200 mm
- automatic level : Fully Automatic
- throat depth mm : 330 mm
- machine type : Synchronized
- length of working table mm : 2000
- width of working table mm : 100 mm
- dimension : 2790*1935*2420mm
- place of origin : China
- brand name : Accurl
- material / metal processed : Brass / Copper, Stainless Steel, Carbon Steel, Aluminum
- automation : Automatic
- extra services : End Forming
- weight kg : 7300
- motor power kw : 11 kw
- key selling points : Automatic
- warranty : 3 years
- machinery test report : Provided
- video outgoing-inspection : Provided
- core components : motor, Pump
- After-sales Service Provided : Engineers available to service machinery overseas
- Extra Services : End Forming
- Power : CNC
- Machine Type : Press Brake
- Raw Material : Sheet / Plate Rolling
- CNC Control system : DELEM DA53T CNC System
- CNC Control Axis : Y X axis CrowningElectro-hydraulic servo
- Electrical components : Schneider Electrical from French
- Motor Power : Siemens from Germany
- BackGauge & RAM Drive : Inverter from Schneider Electrical
- Condition : New
- Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining
- Showroom Location : Canada, United States, Italy, France, Germany, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Morocco, Chile, Colombia, Romania, South Africa, Japan, Malaysia, Australia
- Marketing Type : New Product 2024
- Warranty of core components : 3 years
Products Description

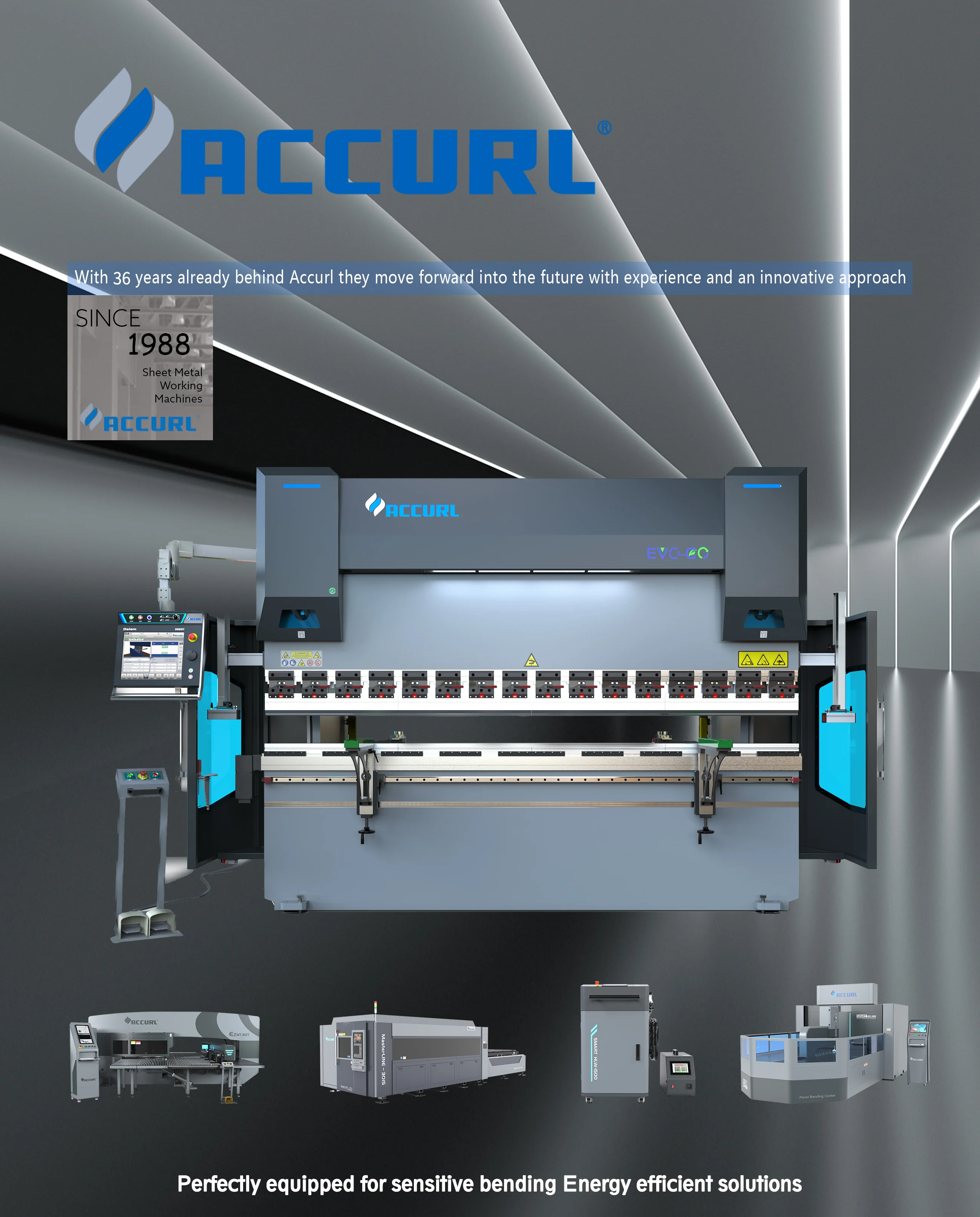

Simple Small Cnc Press Brake Machine For Sheet Bending
Competitive pricing with advanced DELEM DA53T 2D capable graphical controls or Cybelec CybTouch 8PS, and that customers can also
choose ESA S630 or ESA S640W CNC control system.
Smart Series is your first choice in Y1/Y2 machine technology.
Details Images
DELEM CNC Control System
Successfully controlling precision & productivity, modern sheet metal production is inconceivable without high performance software. Highly effective control algorithms optimize the machine cycle, reduce the time required for set-up and ensures consistently high quality.
DELEM DA53T Touch CNC System
* 10.1″ high resolution colour TFT
* “Hot-key” touch navigation
* Up to 4 Axis Y1,Y2 + 2 aux. Axis
* Tool / material / product library
* Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
* CNC Crowning control
* USB memory stick interfacing
* Profile-53TL offline software
Standard Equipment
REQUEST INFORMATION
* CNC DELEM DA53T with 2D colour graphics
* ACCURL® BGA-2 for X=500mm X,R-Axis
* Tool kit: 4 V die V=16-22-35-50 series of 835mm punches
* ACCURL Pro Manual wave crowning system
* GIVI optical scales
* Hoerbiger HAWEI hydraulic system
* High efficiency motor – class IE3
* Electrical cabinet with Schneider, Siemens components

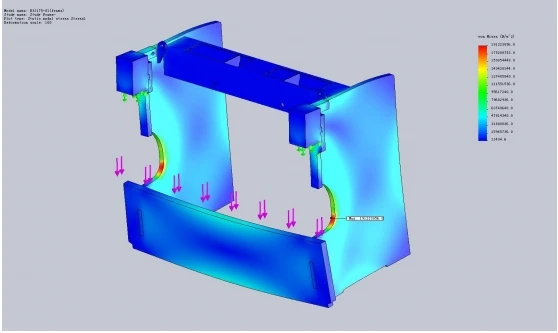

FEA & Stress Analysis
Stress Analysis & Finite Element Analysis

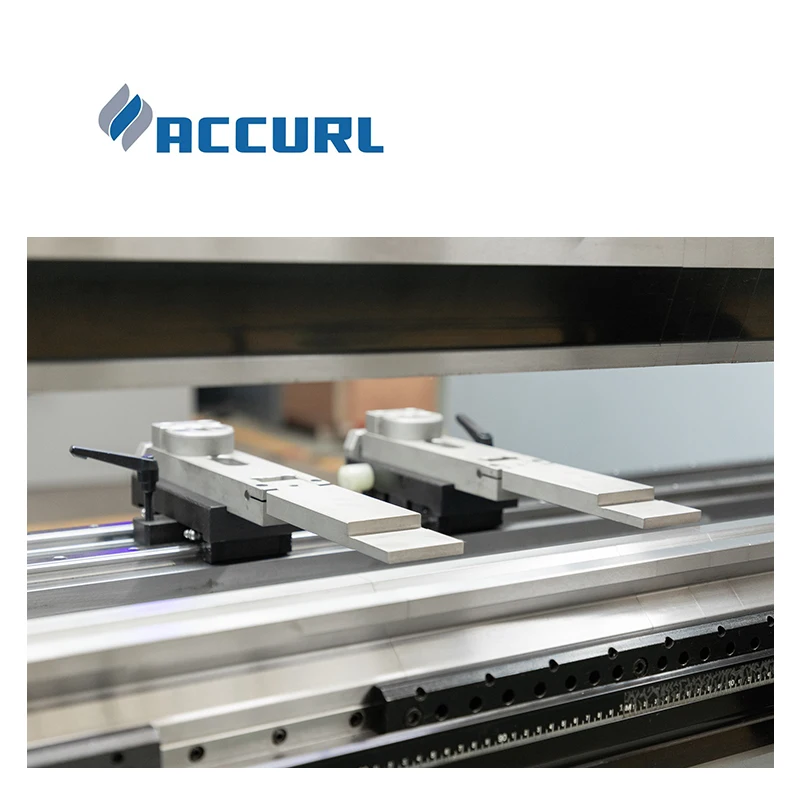

ACCURL BGA-2 BackGauge
Press Brake 2-Axis CNC BackGauge
with X, R-Axis
* Ball screws and linear guide on X, R-axis
* Axis X speed 500 mm/s.
* Manual Z1, Z2-axis with HIWIN linear guide
* Mechanical accuracy ± 0.03 mm.
* Fingers with double stop and micrometric adjustment.
Safety Arrangements

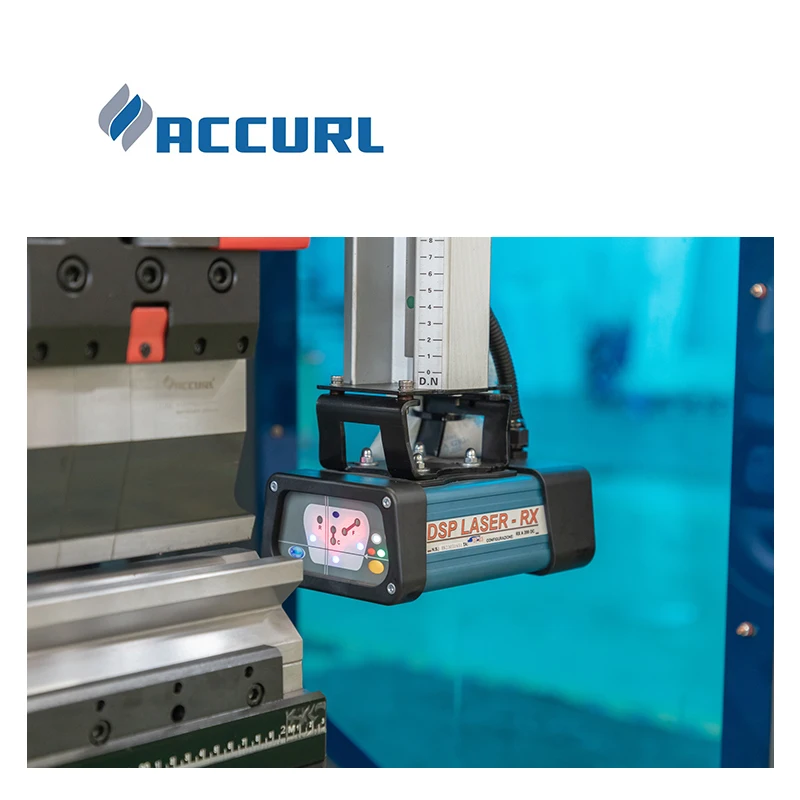

Lazer Safe – Performance Without Compromise
productivity and performance for CNC press brake.
* CLASS 1 Dual Block laser
* Fast response time
* Safety speed automatically monitored
* Stopping distance automatically monitored
* Status LEDs – Power / Front/middle/rear Sensors
* Tray mode for high speed bending of tray & box shapes
* Complex shapes can be achieved in high speed with Tray/Box Mode.
TECHNICAL SPECIFICATION
|
Name
|
Unit
|
PRESS BRAKE AC‐MB7-100Tx3200
|
|
Bending force
|
ton
|
100
|
|
Bending length
|
mm
|
3200
|
|
Distance between columns
|
mm
|
2550
|
|
StrokeY-axis NC‐controlled stroke axes
|
mm
|
120
|
|
Daylight
|
mm
|
380
|
|
Throat Depth
|
mm
|
320
|
|
Bed Height
|
mm
|
800
|
|
Bed Cap Width
|
mm
|
80
|
|
Y-axis advance speed
|
mm / sec
|
120
|
|
Y-axis working speed
|
mm / sec
|
10
|
|
Y-axis return speed
|
mm / sec
|
100
|
|
X-axis BackGauge Speed
|
mm / sec
|
150
|
|
X-axis BackGauge Travel
|
mm
|
600
|
|
X-axis BackGauge Precision
|
mm
|
0.01
|
|
Gaugeable with 3rd Position
|
mm
|
850
|
|
Workpiece straightness
|
mm
|
0.6 /m
|
|
Bending angle accuracy
|
′
|
<±50
|
|
Sliding Front Arms
|
pcs
|
2
|
|
Backgauge Finger Block
|
pcs
|
3
|
|
Motor Power
|
kw
|
7.5
|
|
Oil Tank Capacity
|
lt
|
260
|
|
Crowning System
|
‐
|
/
|
|
Length
|
mm
|
3500
|
|
Width
|
mm
|
1650
|
|
Height
|
mm
|
2350
|
|
Weight
|
kg
|
7350
|
|
More types press brake, please contact us, will give you best solution
|
