- slider stroke mm : 150 mm
- automatic level : Fully Automatic
- throat depth mm : 200 mm
- machine type : Synchronized
- length of working table mm : 1500
- width of working table mm : 100 mm
- dimension : 2210*1500*2300mm
- place of origin : Anhui, China
- brand name : AccurL
- material / metal processed : Stainless Steel, Alloy, Carbon Steel, Aluminum
- automation : Automatic
- extra services : End Forming
- weight kg : 3300
- motor power kw : 3.7 kw
- key selling points : High Safety Level
- warranty : 2 years
- machinery test report : Provided
- video outgoing-inspection : Provided
- core components : Bearing, motor, Gear, PLC
- Keyword : press brakes
- Machine Type : Hydraulic cnc
- Bending force : 40tons
- Y1+Y2 Stroke : 150mm
- Daylight : 420mm
- Motor Power : 3.7kW
- After-sales Service Provided : Engineers available to service machinery overseas
- Raw Material : Sheet
- Name : Hydraulic Cnc Press Brake
- Application : Stainless Plate Bending
- Condition : New
- Applicable Industries : Building Material Shops, Manufacturing Plant, Home Use, Retail, Construction works , Energy & Mining
- Showroom Location : Canada, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Morocco, Argentina, South Korea, Chile, Colombia, Romania, South Africa, Japan, Malaysia, Australia
- Warranty of core components : 2 years
- Marketing Type : New Product 2021
Products Description

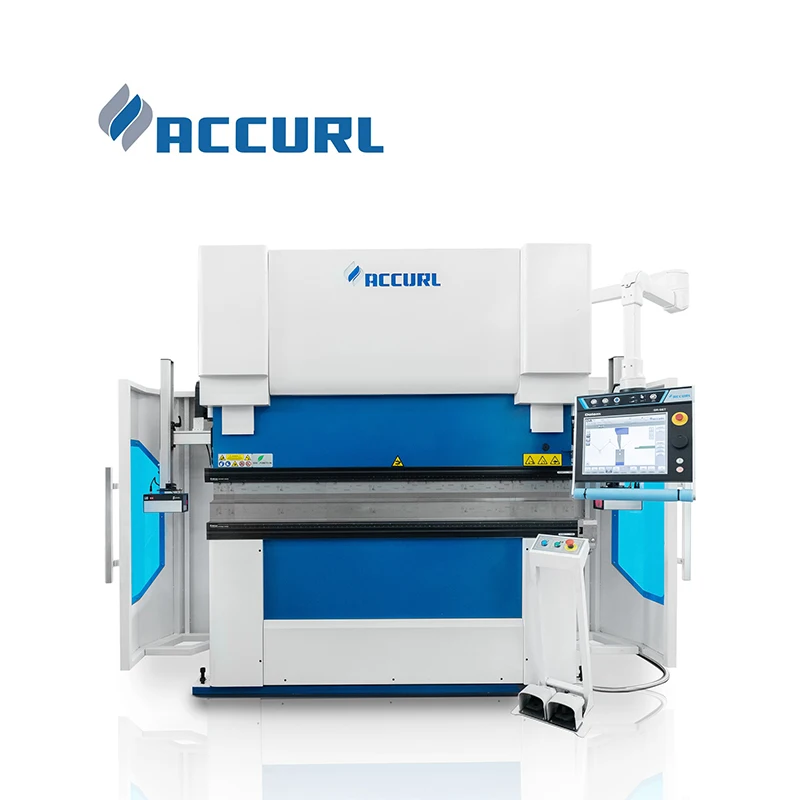

ACCURL® New eB Ultra Electric CNC Press Brake
ACCURL 100% Electrical Press Brakes:
ACCURL® New eB Ultra is a fully electric machine is inte-grated with the highest technology coupled with a friendly use,the transmission components are high quality and suitable for high loads.
Details Images
CNC CONTROL SYSTEM
CNC BACKGAUGE
ACCURL press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.
|
BGA
|
X
|
R
|
Z1
|
Z2
|
X2
|
|
Strokemm
|
750
|
150
|
UNDER REQUEST
|
UNDER REQUEST
|
190
|
|
Speedmm/s
|
500
|
170
|
2000
|
2000
|
200
|
|
Precisionmm
|
+0,02
|
+0,05
|
+0,05
|
+0,05
|
+0,02
|
|
Type of motor
|
BRUS HLESS
|
BRUS HLESS
|
BRUS HLESS
|
BRUS HLESS
|
BRUS HLESS
|
|
Mechanical system
|
SCREW
|
SCREW
|
RACR
|
RACR
|
SCREW
|
MACHINES BLOCK
CHOOSE AND CONFIGURE YOUR PRESS BRAKE:
A territory with a consolidated technological background and the inventiveness of the ACCURL family are the ingredients of the birth of ACCURL.One of the first company to apply Industry 4.0 enters the world of sheet metal bending machines in China by ACCURL.
The Servo Electric Press Brake Provides Enegry Saving Up to 50%
New eB Ultra is possible to guarantee better performance and durability, reducing unwanted effects caused by inertia. and this model is a top machine that guar-antees high precision and competitiveness.

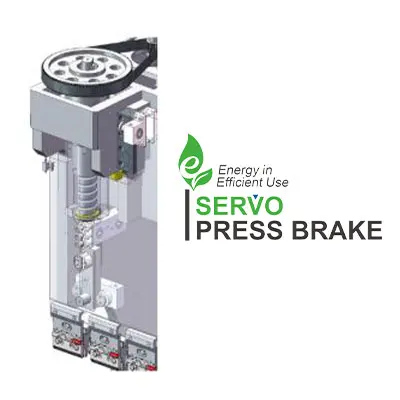

SERVO-ELECTRIC TECHNOLOGY
100% Fully-electric press brake for simple to complex sheet metal bending.•The eB Ultra Series ball screw press brake is driven by an AC servo motor and ball screw drive mechanism. It maximizesproductivity with high speed ram and high precision repeatability0.001mm. This drive method is superior to all other electric/hydraulic performance and is quiet in operation.
COMPARATIVE:
The ACCURL eB Ultra electric press brake offers increased profitability as machine occupancy rates rise. In addition, the development of GREENER eco-design products enables a significant reduction of environmental impacts and energy savings, which results in cost savings at the same time.
High Reliability and Maximum Productivity
•The eB Ultra features the advantages of high acceleration, deceleration, and fast response times of the servo-electric drive system. Compared to conventional press brakes considerable productivity increase can be reached; reduction of cycle times by up to 35 % and more is the reality.
