- max. cutting width mm : 3200
- max. cutting thickness mm : 6
- automatic level : Fully Automatic
- shearing angle : 0.5~2..5
- blade length mm : 3300
- backgauge travel mm : 20 – 800 mm
- throat depth mm : 100
- brand name : Accurl
- power kw : 7.5
- weight kg : 6500
- place of origin : Anhui, China
- voltage : 380V 220V Optional
- dimensionl*w*h : 4000x1800x2100mm
- warranty : 1 Year
- key selling points : High Productivity
- machinery test report : Provided
- video outgoing-inspection : Provided
- core components : Bearing, motor, PLC
- Model : Master MS8
- Controller System : E21S/P40T/DAC360T/CT8PS
- Cutting Length : 2500~6000mm
- Backgauge travel : 800mm
- CNC Adjust the blade gap and Angle : Yes
- Hydraulic System : Germany Rexroth
- Electrical components : French Schneider
- Main Motor : Germany Siemens
- Cutting Blade : Upper and Bottom Blade 6CrW2Si
- After-sales Service Provided : Online/On-site after-sales service
Product Description
HYDRAULIC GUILLOTINE SHEARS MASTER SERIES
The ACCURL guillotine shear is the fruit of a project resulting in our bringing together ‘Made in China’ creativity, design and innovation with all the reliability of the best Chinese and European component range.The result is a perfect mix of avant-garde and efficient technology, guarantee of an extremely solid machine, precise with its cuts
and of extremely high quality.
and of extremely high quality.
|
CONFIGURATION
|
CNC Control System
|
DELEM DAC360T form Netherlands
|
|
|

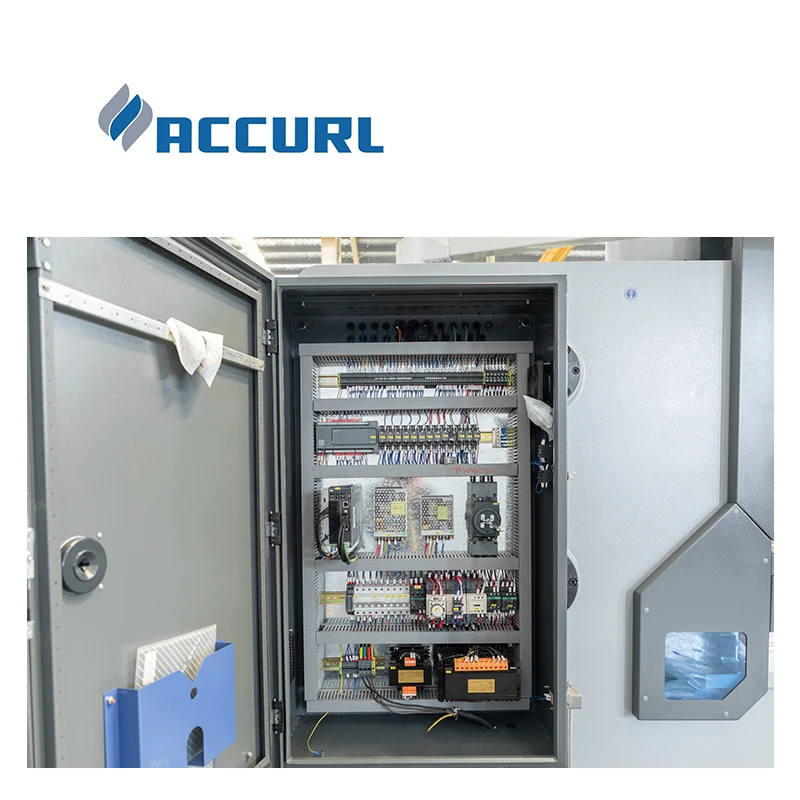

Electrical components
|
Schneider Electrical from French
|
||
|
Main Motor
|
Siemens from Germany Brand
|
||
|
Angle measurement Sensor
|
OPKON from Türkçe Brand
|
||
|
Inverter Drive
|
Taiwan DELTA Servo Motor & Driving System
|
||
|
PLC
|
Schneider Electrical from French
|
||
|
Cutting Blades
|
FEILI from Taiwan Brand
|
||
|
Hydraulic System
|
Bosch-Rexroth from Germany
|
||
|
Hydraulic Pump
|
SUNNY from U.S.A Brand
|
||
|
Tubing connector
|
EMB Brand from Germany
|
||
|
Ball Screw/ Liner guide
|
HIWIN from TaiWan Brand
|
Details Images

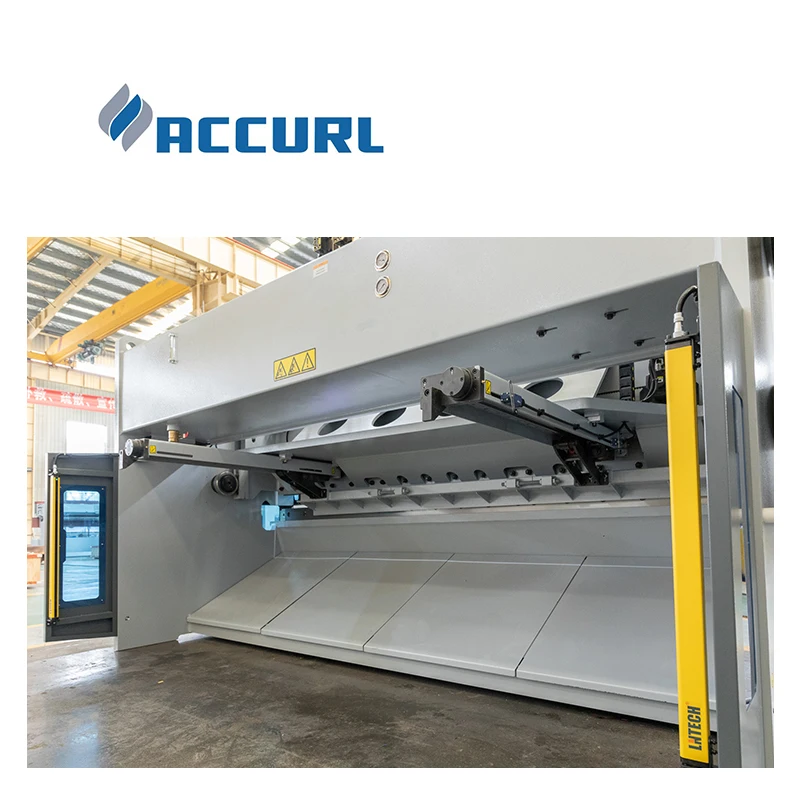

MACHINE DESIGN
ACCURL Shears features a rigid frame for min deflection under the load. The frame steels are German origin and designed using SOLIDWORKS 3D programming and made with quality steel Improved Q235 using the latest technology.
Feature:
* The machine welding is made by welding plant and welding robots.
* After the welding,we make stress relief process by vibration system.
* After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.
* Allreference surfaces and connection holes are machined.
* The machine welding is made by welding plant and welding robots.
* After the welding,we make stress relief process by vibration system.
* After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.
* Allreference surfaces and connection holes are machined.

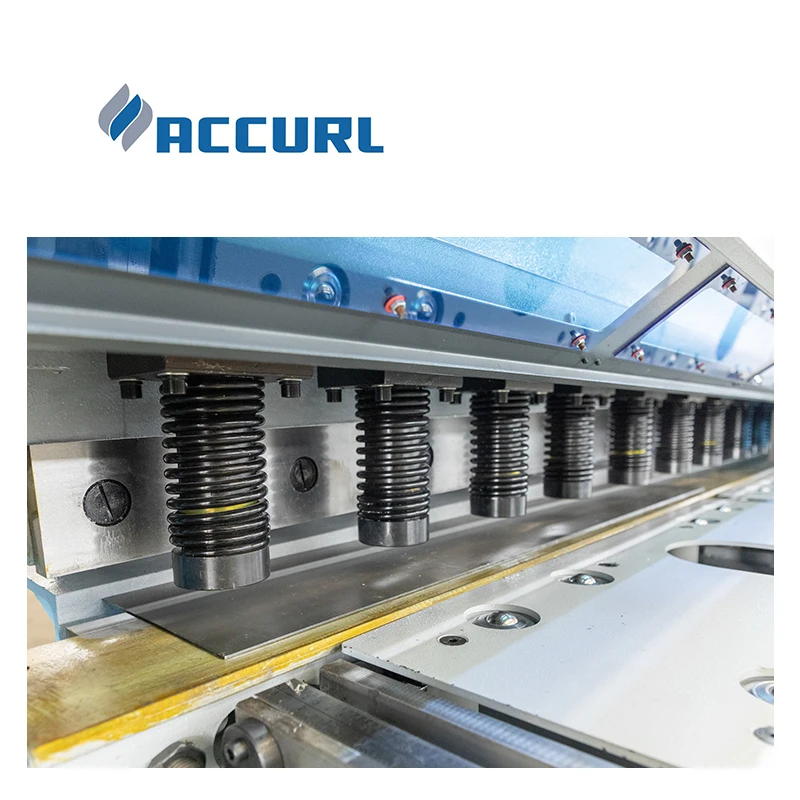

SHEARING PROCESS
Perfect design in every aspect; By choosing the new and improved CNC Master MS8 guillotine, you will bring modern-day technology to your company with maximum
safety, high accuracy and unique ease of use.
Blade gap, cutting angle and cutting length are all adjusted based on material selection and thickness automatically.
safety, high accuracy and unique ease of use.
Blade gap, cutting angle and cutting length are all adjusted based on material selection and thickness automatically.
QUALITY
ACCURL, known as one of the top worldwide manufacturers in the sheet metal industry,
proudly announces its latest shear model to the market,Variable Rake Hydraulic Guillotine.
The critical parts of the Accurl press brakes are manufactured in Germany.The carefully selected components come from long-term
partners. We rely on our quality and therefore give our guillotine a 3-year warranty.
proudly announces its latest shear model to the market,Variable Rake Hydraulic Guillotine.
The critical parts of the Accurl press brakes are manufactured in Germany.The carefully selected components come from long-term
partners. We rely on our quality and therefore give our guillotine a 3-year warranty.
PNEUMATIC SHEET SUPPORT SYSTEM
Monobloc Panel Type support system:
Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts.
Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts.
CNC CONTROL UNIT
* 7″ widescreen TFT Colour LCD display * Back / front gauge control
* Panel based housing
* Retract function
* Cutting angle and gap control
* Stroke length limitation
* Manual movement of all axes
* Force control
* Return to Sender function
* Program memory for 100 programs
* Sheet support system.
* Panel based housing
* Retract function
* Cutting angle and gap control
* Stroke length limitation
* Manual movement of all axes
* Force control
* Return to Sender function
* Program memory for 100 programs
* Sheet support system.

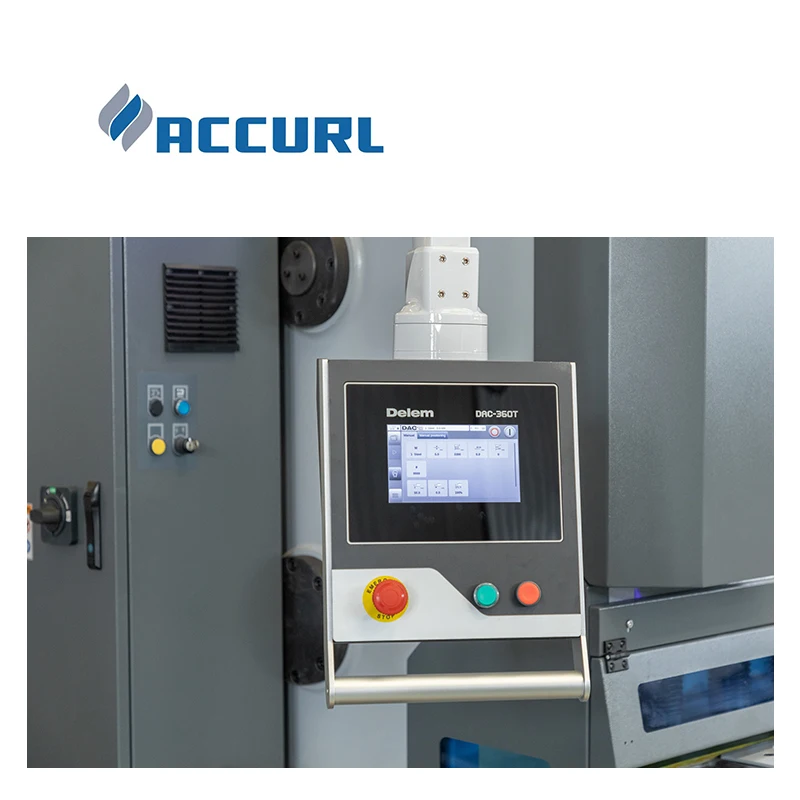

DAC360T CNC Control Unit
ACCURL has chosen the very powerful new generation DELEM DAC360T, which offers a higher level of efficiency in programming and control of the guillotine. The winning MADE in Netherlands design and the high quality of all the construction details guarantee prestigious performances and long product life.
SPECIFICATION
|
Type
|
Cut Thickness
mm
|
Cut length
mm
|
Shear Angle
Degree
|
SPM
min-1
|
Back Gauge
mm
|
Throat Depth
mm
|
Main Motor
kw
|
Net Weight
kg
|
|
MS8-6×3200
|
6
|
3200
|
0.5°-1.5°
|
14
|
800
|
100
|
7.5
|
6500
|
|
MS8-6×4000
|
6
|
4000
|
0.5°-1.5°
|
12
|
800
|
100
|
7.5
|
8400
|
|
MS8-8×3200
|
8
|
3200
|
0.5°-1.5°
|
12
|
800
|
100
|
7.5
|
7400
|
|
MS8-8×4000
|
8
|
4000
|
0.5°-2.0°
|
11
|
800
|
100
|
11
|
9500
|
|
MS8-10×3200
|
10
|
3200
|
0.5°-2.0°
|
8
|
800
|
120
|
11
|
8500
|
|
MS8-10×4000
|
10
|
4000
|
0.5°-2.0°
|
8
|
800
|
120
|
11
|
11000
|
|
MS8-13×3200
|
13
|
3200
|
0.5°-2.0°
|
7
|
800
|
120
|
18.5
|
9200
|
|
MS8-13×4000
|
13
|
4000
|
0.5°-2.2°
|
6
|
800
|
130
|
18.5
|
12800
|
|
MS8-13×6000
|
13
|
6000
|
0.5°-2.4°
|
6
|
1000
|
150
|
18.5
|
26000
|
|
MS8-16×3200
|
16
|
3200
|
0.5°-2.5°
|
6
|
800
|
130
|
22
|
12000
|
|
MS8-16×4000
|
16
|
4000
|
0.5°-2.5°
|
6
|
1000
|
130
|
30
|
26500
|
|
MS8-16×6000
|
16
|
6000
|
0.5°-2.5°
|
6
|
1000
|
130
|
30
|
33000
|
|
MS8-16×8000
|
12
|
4000
|
0.5°-2.5°
|
5
|
1000
|
130
|
30
|
75500
|
Company Profile
Why choose us?
ACCURL is a famous manufacturer of metal sheet equipments in world market. Its Brand ¡°Accurl¡± has been leading brand for many years in the field of international metal sheet equipments. Our group devote ourselves to product development, production and sales.Our main products are: CNC Press Brake, Shears, Hydraulic press, Laser Cutter and CNC rolling machine these sheet metal processing equipments.we are using advanced technology from German, Japan, and Italy.we can produce large Hydraulic Press and Press Brake more than 16000 ton & 16m.we are with professional R&D team, and we have World-class design and manufacturing capabilities.
Technological Process
We Got 5 Stars Rating!
Exhibition
Production Power
The Robot Arm
OEM Press Brake
OEM Press Brake
Our American dealers came to visit the factory
Product packaging
1. Our wooden case is after fumigation treatment. Need for timber inspection to save shipping time.
2. All the spare parts of the machine were covered by the same soft materials, mainly using pearl wool.
3. The utmost is a wooden case with fixed formwork.
4. The bottom of the wooden case has a firm iron jack, convenient for handling and transport.
Our Services
QUALITY CONTROL
Nearly 50 years of expertise in the manufacture of press brakes and guillotines machines give us the security that is needed for future challenges. High standards of quality and a team with the best training and knowledge be a major condition for our success. Our products are the result of a continued focus on improving internal processes underpinned by high quality levels, that result in the recognition of Accurl’ s machines as quality garantee equipment.
